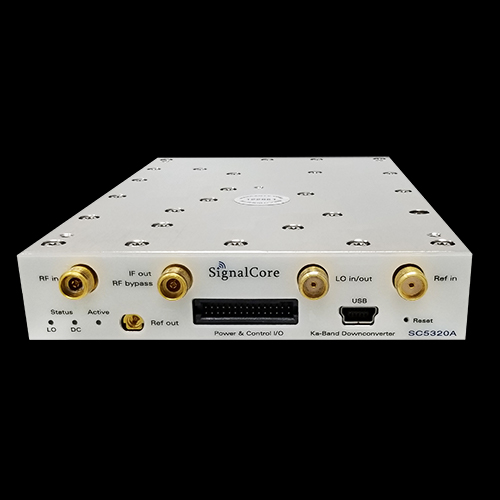

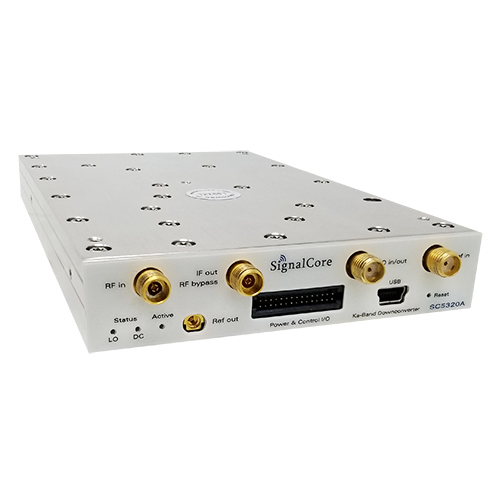

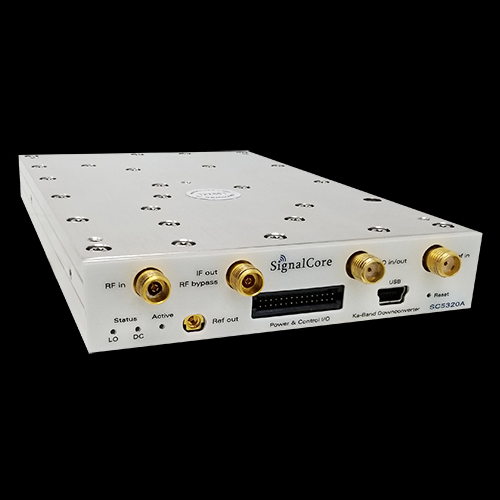

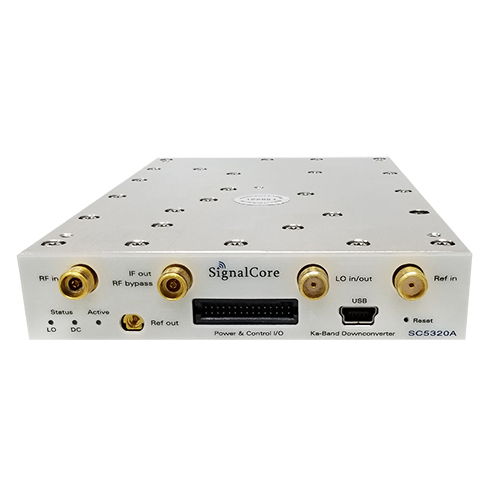

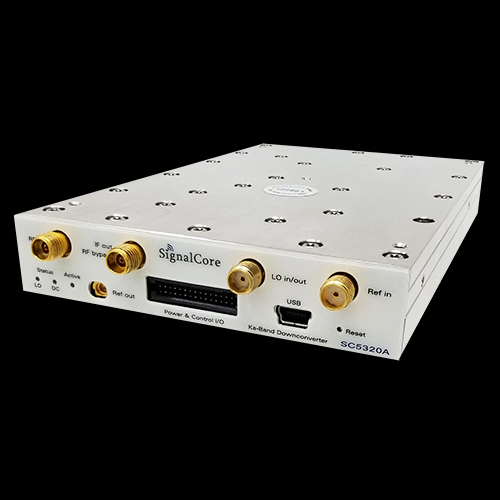

40 GHz RF Downconverter core module 40 GHz RF Downconverter core module 40 GHz RF Downconverter core module 40 GHz RF Downconverter core module 40 GHz RF Downconverter PXIe 12V Power Supply Kit Accessory image Digital I/O and Power Supply Cable Accessory image

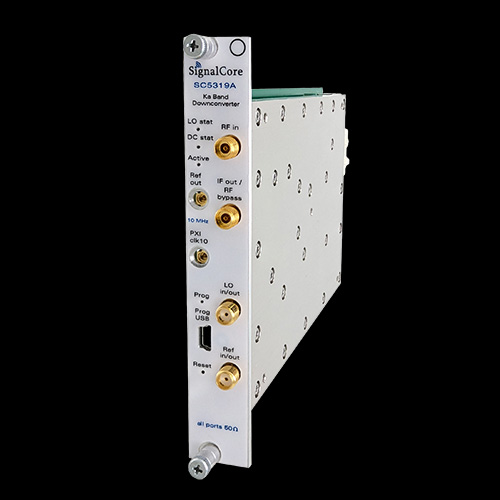

40 GHz RF Downconverters

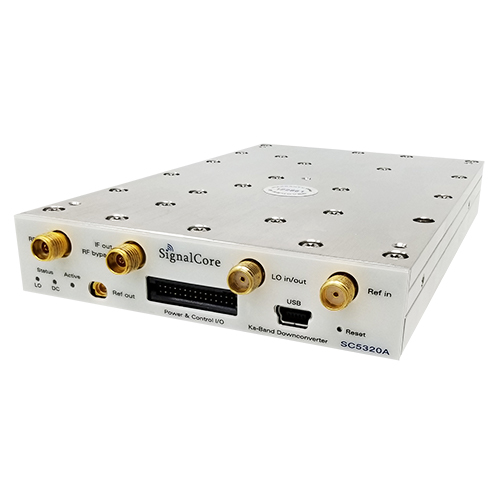

The SC5320A is a Ka band single stage downconverter, with input RF range from 20 GHz to 40 GHz, external LO frequency range from 10 GHz to 20 GHz, output IF range from 100 MHz to 4 GHz, and 3 dB bandwidth of 2 GHz. This module features an internal synthesized local oscillator, selectable RF preamplifier, and variable gain control, making it a compact and versatile standalone downconverter module. With the option for an external LO, the SC5320A may be configured for SISO applications or paired together with multiple units for MIMO applications such as ground-based satellite communications, point-to-point radio, test instruments, and other rf measurement systems.

Full implementation instructions, GUI, driver software, and example code are provided with each module.

Get a Quote
Input RF range
Gain Range
LO Phase Noise
Input IP3
Noise Figure
20 GHz to 40 GHz
-10 to +45 dB typ
< -110 dBc/Hz @ 10 kHz, 20 GHz
> 10 dBm
< 10 dB with preamp enabled

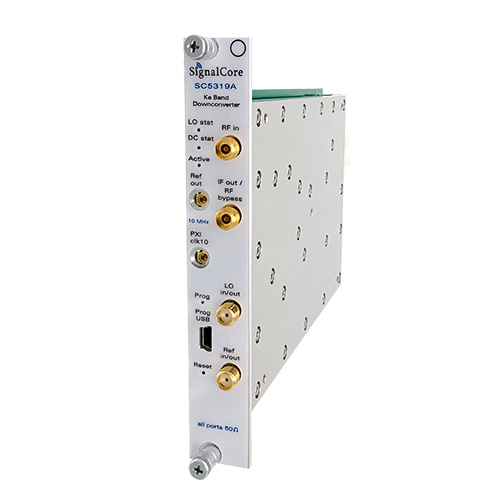

SC5319A PXI Express
Title
Description
Version
Date Published
Size
Set Up File 32 Bit
A zip file including all necessary set up files. Now includes support for NI-VISA. For 32 bit OS. For 32 bit OS.
1.1.0.0
November 2022
31.1 MB
download
Set Up File 64 Bit
A zip file including all necessary set up files. Now includes support for NI-VISA. For 64 bit OS. For 64 bit OS.
1.1.0.0
November 2022
59.0 MB
download
SC5320A USB-SPI-RS232
Title
Description
Version
Date Published
Size
Set Up File 32 Bit
A zip file including all necessary set up files. Now includes support for NI-VISA. For 32 bit OS. For 32 bit OS.
1.1.0.0
November 2022
31.1 MB
download
Set Up File 64 Bit
A zip file including all necessary set up files. Now includes support for NI-VISA. For 64 bit OS. For 64 bit OS.
1.1.0.0
November 2022
59.0 MB
download
SC5319A PXI Express
Title
Description
Revision
Date Published
Size
Datasheet
View in depth specifications, including graphs and other information. Find all the specs here.
Rev 1.0
April 2022
0.69 MB
download
Hardware Manual
Includes instructions for unpacking and operating the module. How to unpack and operate.
Rev 1.2
December 2022
1.35 MB
download
Programming Manual
A detailed guide on programming the module. How to program the module.
Rev 1.0
April 2022
0.60 MB
download
SC5320A USB-SPI-RS232
Title
Description
Revision
Date Published
Size
Datasheet
View in depth specifications, including graphs and other information. Find all the specs here.
Rev 1.0
April 2022
0.69 MB
download
Hardware Manual
Includes instructions for unpacking and operating the module. How to unpack and operate.
Rev 1.2
December 2022
1.35 MB
download
Programming Manual
A detailed guide on programming the module. How to program the module.
Rev 1.0
April 2022
0.60 MB
download
Part #
Model #
Description
Interface
7100137-01
SC5319A
40 GHz RF Downconverter

Product Contents

7100137-01 - 40 GHz RF Downconverter, PXIe
Software USB Thumb Drive
PXI Express
Get a Quote
7100138-01
SC5320A
40 GHz RF Downconverter

Product Contents

7100138-01 - 40 GHz RF Downconverter, USB-SPI
7100149-02 - Digital I/O and Power Supply Cable
USB cable - Type A to Mini B
Software USB Thumb Drive
USB-SPI
Get a Quote
7100138-02
SC5320A
40 GHz RF Downconverter

Product Contents

7100138-02 - 40 GHz RF Downconverter, USB-RS232
7100149-02 - Digital I/O and Power Supply Cable
USB cable - Type A to Mini B
Software USB Thumb Drive
USB-RS232
Get a Quote
7100143-01

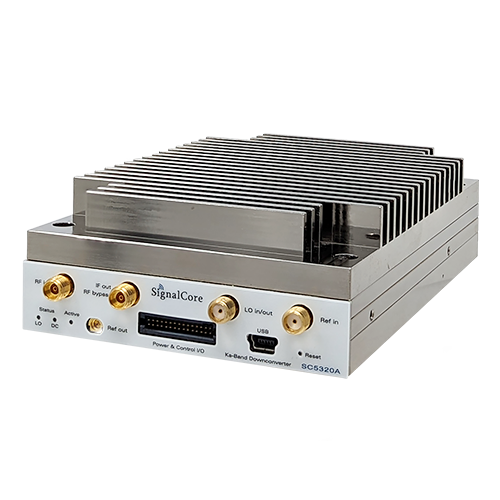

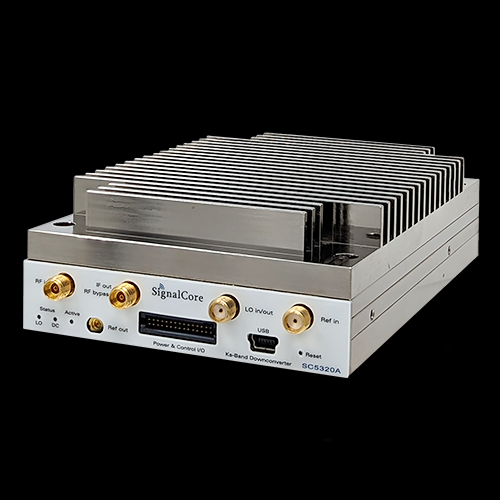

Heat Sink 0.75" H
Get a Quote
7100144-01
Heat Sink 1.25" H
Get a Quote
7100148-01
12V Power Supply Kit
Get a Quote
7100149-02
Digital I/O and Power Supply Cable
Included with Product Kit
Get a Quote
