9.05 to 9.55 GHz Dual Channel RF Downconverters

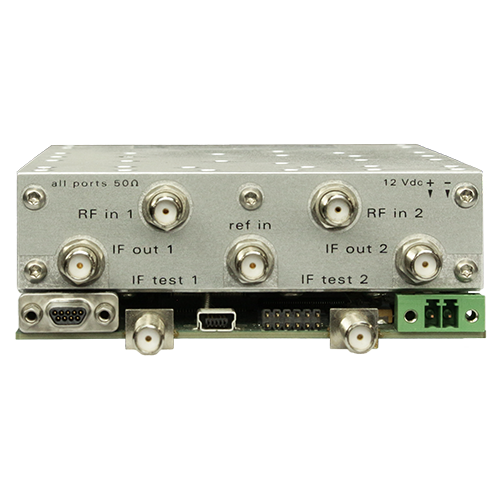

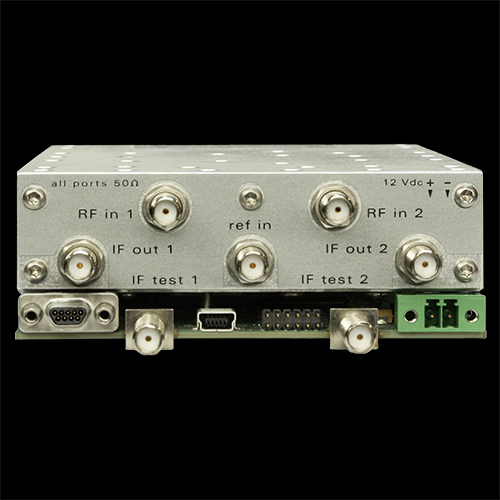

The SC5360B is a 9.05 to 9.55 GHz dual channel, dual-stage conversion, superheterodyne downconverter with integrated local oscillators (LO) that deliver superior performance. Designed initially for EW, it meets demanding applications such as X-Band radar systems, communication systems, spectral monitoring systems, and spectrum analyzers.

The standard output IF is 140 MHz with a 3 dB bandwidth of 40 MHz and exhibits no spectral inversion. Both channels are driven directly by common LOs, making the SC5360B desirable for applications that require dual coherent reception of signals in a compact size. The SC5360B is designed to ease the efforts of systems engineers in their embedded applications, such as signal intelligence or radar systems where users require high quality, compact RF modules. Given our combination of low phase noise, high dynamic range, excellent flatness response, and low spurious content, SignalCore products are the clear choice for frequency translation.

Full implementation instructions, GUI, driver software, and example code are provided with each module.
